PV hybrid ESS

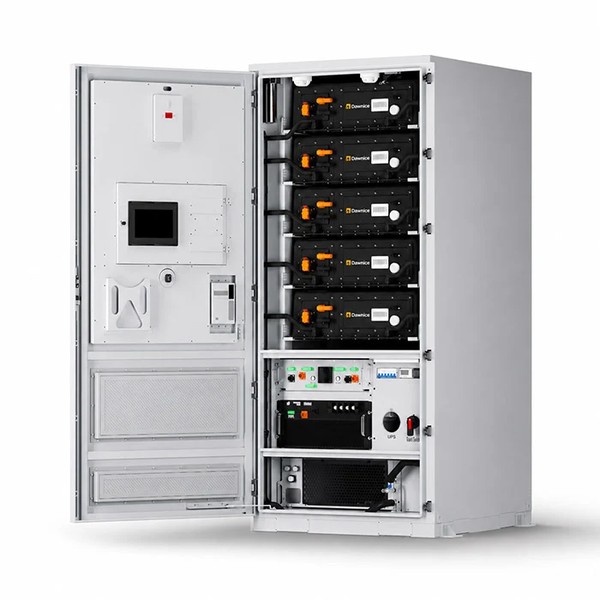

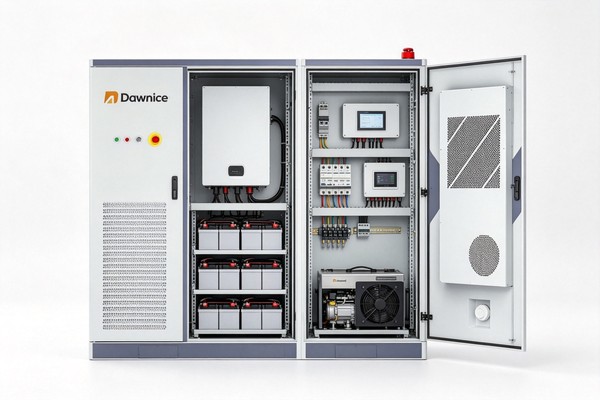

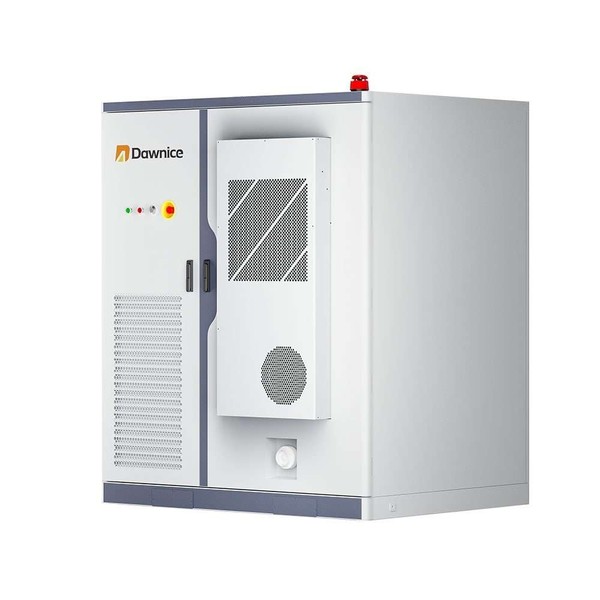

Sunflower 125kW / 261kWh PV Hybrid ESS
An integrated PV hybrid energy storage system combining 125kW backup output with 261kWh-class battery capacity.
Technical data
Core specifications
Applications
Suitable project scenarios
Documentation
Documents supplied with this platform
The platform datasheet is available as a PDF. The certificate package, wiring diagram, and warranty card are issued against the confirmed order configuration.
Datasheet
Full electrical and mechanical parameters for the selected model and variant.
Datasheet — PDF, 2 pages — view or saveCertificate package
Matching certificates for the destination market. Standards referenced:IEC 62619 / IEC 62477 / IEC 63056 / IEC 61000 / UL / CE and others.
Request certificate packageWiring and installation
Single-line diagram, terminal layout, and installation guidance for the delivered configuration.
Request documentationWarranty card
Warranty terms for the battery platform and power conversion equipment, stated per model.
Discuss warranty terms
Certification applicability depends on model, order configuration, and destination market. The latest matching certificate package is confirmed before final quotation.
FAQ
Common questions
How much PV can it take?
Up to 250 kW usable PV input against a 261 kWh battery, roughly two to one.
What is the cycle life?
6,000 cycles to 80% state of health at 25°C and 0.5C; cell level is rated up to 8,000.
Can it be installed outdoors?
Yes, IP54 with C4 corrosion protection and liquid cooling.
Sources
Where these figures come from
- Manufacturer datasheet (PDF)Figures on this page are taken from this document.
Project support
Need a configured battery storage solution?
Send your application, location, load profile, and target capacity. We will recommend a suitable Ruibit / Dawnice system and confirm sizing assumptions with you.
Quotation target: 24 working hours for a complete brief. Datasheet and certificate package supplied per configuration.
