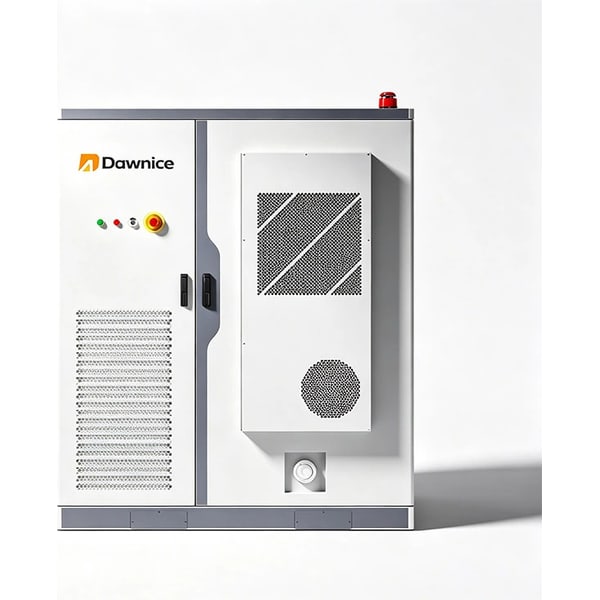

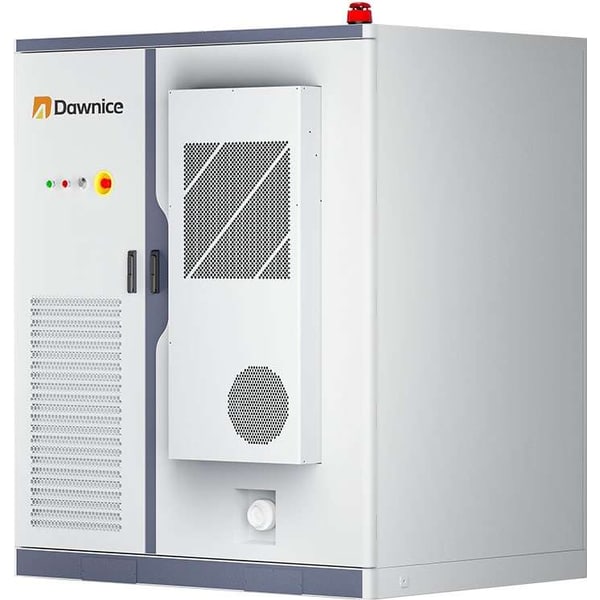

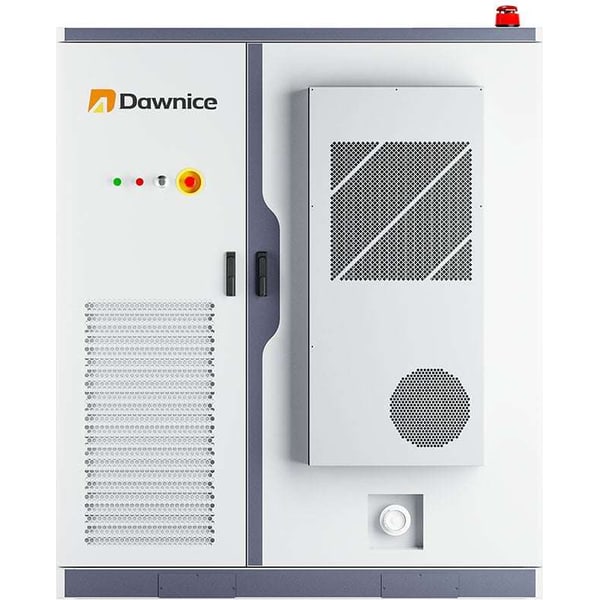

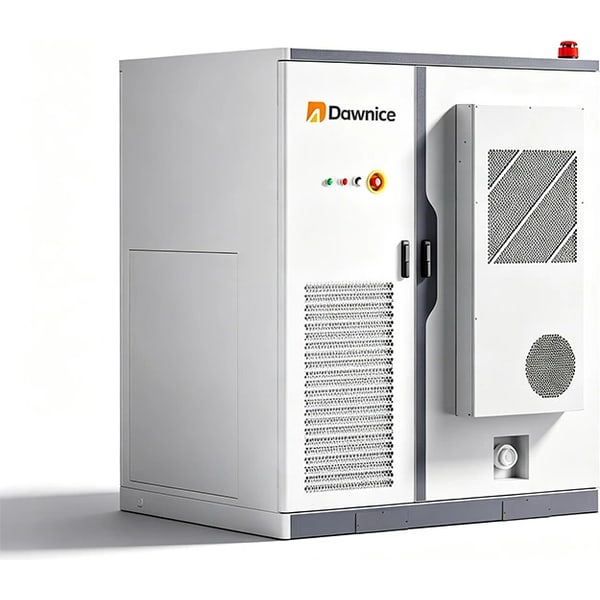

Dawnice HZEB-HCT-125TS/265 PV-Storage-Genset Hybrid
A 125kW / 265.267kWh all-in-one platform that couples PV, battery storage, and a diesel generator, with 20ms source transfer and black-start capability.
Technical data
Core specifications
Applications
Suitable project scenarios
Documentation
Documents supplied with this platform
Datasheet, certificate package, wiring diagram, and warranty card are issued against the confirmed order configuration.
Datasheet
Full electrical and mechanical parameters for the selected model and variant.
Request datasheetCertificate package
Matching certificates for the destination market. Standards referenced:IEC 62619 / IEC 62477 / IEC 63056 / IEC 61000 / UL / CE and others.
Request certificate packageWiring and installation
Single-line diagram, terminal layout, and installation guidance for the delivered configuration.
Request documentationWarranty card
Warranty terms for the battery platform and power conversion equipment, stated per model.
Discuss warranty terms
Certification applicability depends on model, order configuration, and destination market. The latest matching certificate package is confirmed before final quotation.
FAQ
Common questions
Can it run without the diesel generator?
Yes. It runs grid-tied or islanded on PV and battery alone; the generator is an input, not a requirement.
How fast does it transfer between sources?
Within 20ms, fast enough that most loads ride through without a UPS.
What PV array can it accept?
Up to 120kW, with an MPPT window of 200-700V and open-circuit input up to 900V.
Project support
Need a configured battery storage solution?
Send your application, location, load profile, and target capacity. We will recommend a suitable Ruibit / Dawnice system and confirm sizing assumptions with you.
Quotation target: 24 working hours for a complete brief. Datasheet and certificate package supplied per configuration.
